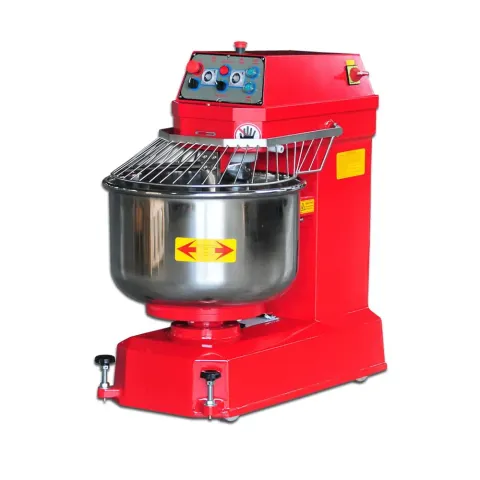

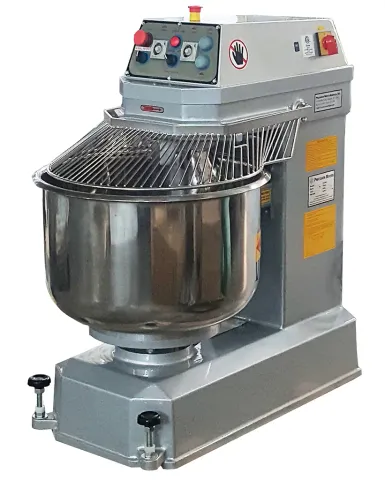

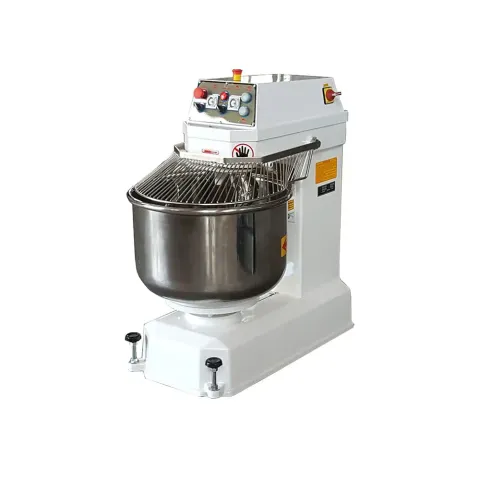

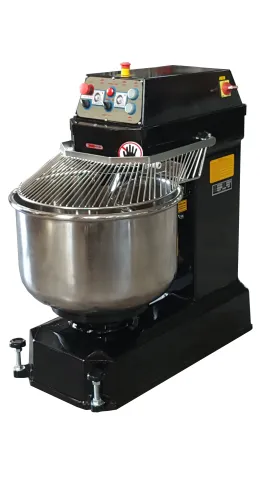

25 kg dry-flour Spiral Mixer Dough Kneader (Taiwan Made)
Strong enough for bagels,gentle enough for artisan dough, Taiwan made Stationary Bowl Spiral Mixers areavailable in a wide range of sizes, and can mix from 20 and 440 lbs. offlour. Coordinated 2-Speed spiral and bowl rotation gives maximumcontrol of ingredient blending, dough development and better end product.
Specifications
Bowl Capacity | 74 Qt (70 Liter) |
Flour Capacity | 55 lbs (25 kg) |
Dough Capacity | 88 lbs (40 kg) |
Bowl Size | 21.6” x 14” (550*365 mm) |
Speeds | 2 Speed Spiral and Bowl Drive |
Timer | 2 Timers with auto changeover |
Spiral Arm Motor | 5 HP |
Bowl Motor | 0.5 HP |
Voltage | 3 phase for 220V-415V |
N. W. / G. W. | 827 lbs (375 kg) / 924 lbs (419 kg) |
Dimension | 39” x 23” x 43” (1000*590*1080 mm) |
Accessory | 1 x Stainless Steel Bowl 1 x Stainless Steel Spiral Arm 1 x Stainless Steel Breaker Bar 1 x Stainless Steel Guard |
Country of Origin | 100% made in Taiwan |
Features

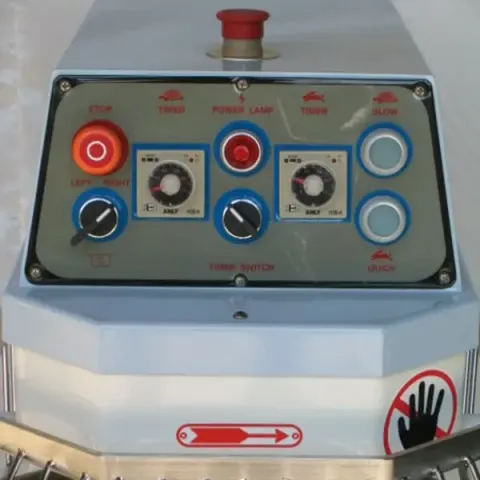

l Two Timers with AutomaticChangeover from Low to High Speed.
l Reversible Bowl Rotation.
l Heavy-duty agitator is 20% thicker than industry leader.
l Hi-Speed Lock Out Switch to prevent high speed operation.

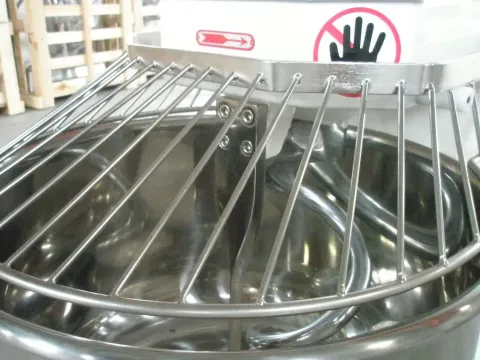

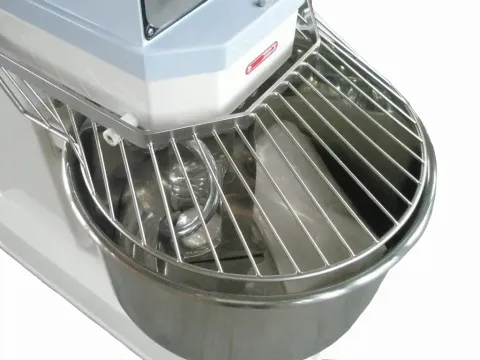

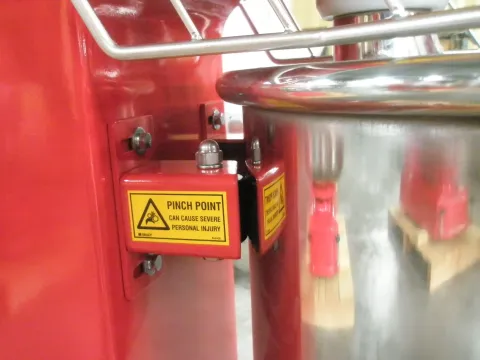

l See-thru bowl guard with safety interlock prevents operation withguard open.
l Belt driven Arm and Bowl for quick operation and low maintenance.
l Heat treated enamel coating resists scratches, rust, and dents.

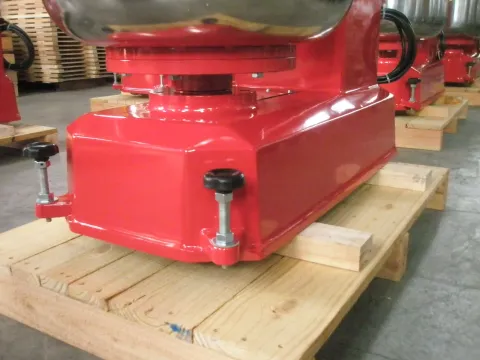

l Mounted on castors for extra mobility and easy maintenance.
l S/S SecurityGuard & Spiral Hook.
l Drive beltmade from durable PVC fiber.
l Heavy-dutyagitator is 25% thicker than industry leader.
l Handlesheavier PIZZA & BAGEL dough at LOW speed only.
l Reversiblemixing action makes better dough, and in less time.
l Heavy-dutyconstruction and powerful two-motor system.
l Heat treatedenamel coating resists scratches, rust, and dents.
l Mounted oncastors for extra mobility.
l Overloadrelay protects motor and transmission.
l EmergencyStop for safety operation.
Models
Model | Flour | Dough | Liter | Power | Bowl dia. | Dim. (mm) | N. W. |
S-40 | 15 kg | 28 kg | 50L | 2.5 HP | 455*300 mm | 912*550*969 | 190 kg |
S-80 | 25 kg | 40 kg | 70L | 3.5 HP | 550*365 mm | 1000*590*1080 | 375 kg |
S-100 | 38 kg | 60 kg | 80L | 4.75 HP | 600*355 mm | 1090*650*1080 | 395 kg |
S-150 | 50 kg | 80 kg | 100L | 6.75 HP | 670*400 mm | 1220*720*1190 | 450 kg |
S-200 | 75 kg | 120 kg | 180L | 7.5 & 0.75 HP | 750*450 mm | 1260*720*1190 | 500 kg |
S-200B | 75 kg | 120 kg | 180L | 10 & 2 HP | 850*450 mm | 1400*880*1350 | 810 kg |
S-250 | 100 kg | 130 kg | 200L | 10 & 2 HP | 850*450 mm | 1450*880*1400 | 850 kg |
S-300 | 125 kg | 140 kg | 240L | 12 & 3 HP | 850*500 mm | 1560*950*1400 | 920 kg |
S-350 | 150 kg |
|
| 15 & 3 HP | 900*500 mm | 1600*1100*1450 | 950 kg |
S-400 | 175 kg |
|
| 15 & 3 HP | 950*500 mm | 1650*1150*1450 | 1100 kg |
S-450 | 200 kg |
|
| 16 & 3 HP | 1000*500 mm | 1700*1200*1500 | 1200 kg |
Supplier: ATLAS STAR MACHINERY CO., LTD. |
