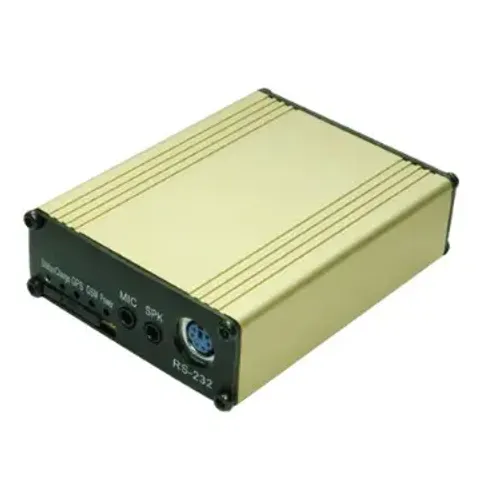

It is an AVL (Automated Vehicle Locator),
also known as a GPS tracker, a GPRS tracker,
a vehicle tracker, or simply a tracker,
good for fleet management,
security or any purposes that may apply.

If you need catalog please visit: www.helioversal.com.tw

1. Built with industrial standard material that can
sustain harsh environments like on a commercial vehicle.
2. High accuracy and fast GPS module from u-blox is employed.
3. Easy connection to the managing servers with a simple
standard protocol that still leaves room for expansion.
4. Built-in multiple I/O’s and a serial port bring more
possibilities for hardware expansion to serve various
purposes.
5. With G-sensor as standard and extra built-in security
features,M1 takes vehicle/personnel security and locating
accuracy to the next level.

Key Specifications/Special Features:

• Hardware features:
  • All components are industrial standard compliant
  • U-blox LEA-4H GPS module is employed, sensitive, fast, and accurate
  • Quad-band GSM module, suitable most of countries of the world
  • Very wide operational voltage from 9 to 36V DC
  • Four digital inputs which are isolated with photo-couple devices to protect main board
  • Three digital outputs with open collector, for applications such as breaking ignition circuit or the electricity of fuel pump
  • One analog input that withstand up to 36V
  • RS232 interface port can be connected to printer, RFID reader, and LED or LCD display panel
  • 2MB flash memory is built-in the unit for storing up to 32,000 position information and events
  • Power cord and all outputs are protected by auto-recovery fuse individually
  • Power cord has an external fuse
  • Watchdog function has been built-in M1 for avoiding malfunction
  • One 1,100mAh backup battery is attached
  • Two-way voice communication and monitoring are possible
  • G-sensor is built-in the unit
• Software features:
  • Real-time tracking
  • Event notification
  • Historical path data log
  • Log dump
  • Towing alert
  • Over speed alert
  • Accumulating journey distance
  • Geofencing
  • Update program on the air (OTA)
  • Forward commands and data capability to and from the RS232 port of unit
  • Immobilization
  • Remote control
  • Query location
  • Configuration with SMS or via GPRS
  • Open protocol for integration
