Wireless Gigabit Media Server (BLULUN180+MLPBM2D)

Model No.
9WBLULUN0702
Made in
Taiwan
Supplier
MilliTronic CO., LTD.
Request for Quotation

SDN / wireless media server / wireless docking station/ bi-directional interactive panel

Key Features


[WIRELESS GIGABIT MEDIA SERVER OVERVIEW]

The Wireless Gigabit Media Server powered by Millitronic provides high speed connectivity for touch panel and USB device in bi-directional communication between windows platform

Millitronic wireless gigabit media server is perfect for smart class room and industrial central controller.Seamlessly connects with interactive panels, bi-directional sendingimage and touch signals at the same time.

---------------------------------------------------

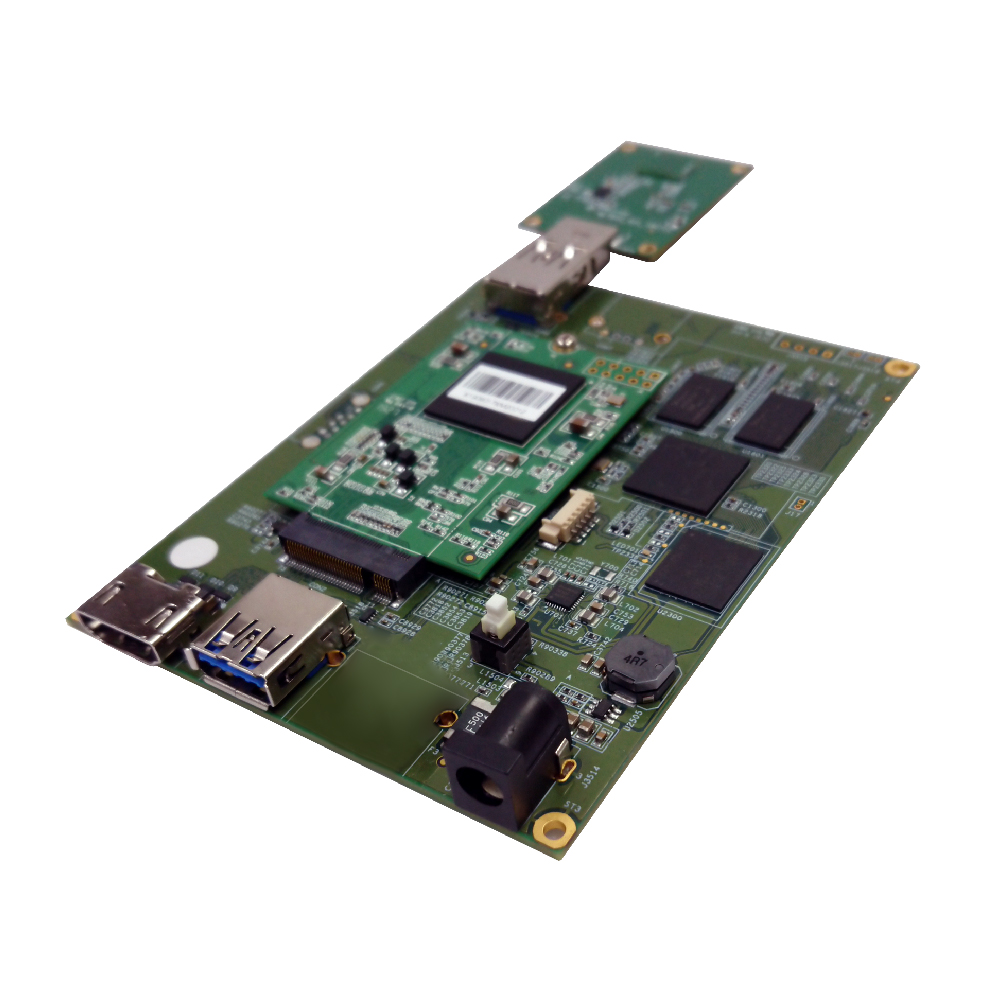

BLULUN180 OVERVIEW

The BLULUN180 powered by Millitronic
for Wireless Gigabit (IEEE 802.11ad)
connectivity,which includes radio and
baseband chip set with 60GHz phase array.
This module provides USB3.0 host , HDMI
1.4 interface, and supports bi-directional
communication.


Features

■ Adaptive beamforming algorithm for RF link budget
■ IEEE802.11ad compliance
■ Bi-direction communication
■ 150 degree wireless FOV
■ 1Gbps @ LOS 10 meters
■ Size: 110mm X 82mm


Radio Front-end Characteristic

■ Direct-Conversion
■ Beamforming phase array
■ Support Ch1 / 58.32GHz,Ch2 / 60.48GHz,Ch3 / 62.64GHz
■ Ave EIRP 22dBm
■ EVM: -22 dB, NF: 6.5dB


Characteristic

■ IEEE 802.11ad SC PHY
■ Quad-core ARM Cortex A-53 CPU
■ Support MCS 1~9, BPSK,QPSK
■ Boot Rom/Internal SRAM
■ IEEE 802.11ad MAC
■ Video decoder supports up to 4K/30Hz
■ Power Consumption < 8W


Applications

■ HDMI over network for wireless dock for low latency display
■  Wireless Gigabit USB3.0 server


Interface

■ USB 3.0 x 1
■ HDMI 1.4 x 1
■ DC Jack 12V


Certification

■ FCC approved

---------------------------------------------------

[MLPBM2D OVERVIEW]

The MLPBM2D powered by Millitronic
for Wireless Gigabit (IEEE 802.11ad)
networking, which includes radio
,baseband, feeding array, and
compact dish antenna with USB 3.0
interface.


Feature

■ IEEE802.11ad compliance
■ Bi-direction communication
■ 1Gbps @ LOS 200 meters
■ Size: 95mm X 65mm X 62mm
■ Power Consumption <3W

Radio Front-end Characteristic

■ Operates 57~66GHz Direct conversion
■ Modulator/demodulator supports : MCS0~MCS9 (BPSK, QPSK)
■ Max EIRP 35dBm
■ EVM: -22 dB, NF: 6.5dB
■ Radio Power consumption
    Tx: 1060mW, Rx: 640mW


Baseband Chip Characteristic

■ IEEE802.11ad MAC,BB PHY ,AFE
■ Short A-MSDU,A-MPDU,A-PPDU
■ Soft MAC integrates WiGig MAC functions
■ DMG Block ACK,DMG link adaption
■ Authentication use WPA-2
■ M.2 B key interface. Supply 5V
■ DC power consumption 1.5~2W


Certification

FCC approved for indoor use


Phase Array

■ Peak Gain 25dBi
■ 3dB beamwidth 6 degree


Driver Support

■ Linux kernal 3.10-4.4 (AP/STA mode)
■ Support Windows 10

Video

    conference room


Last Update : 2020-05-25
