[BLULUN] Wireless Gigabit Media Server

Model No.
9WBLULUN0701-M11
Made in
Taiwan
Supplier
MilliTronic CO., LTD.
Request for Quotation

SDN / wireless media server / wireless docking station/ bi-directional interactive panel

Key Features

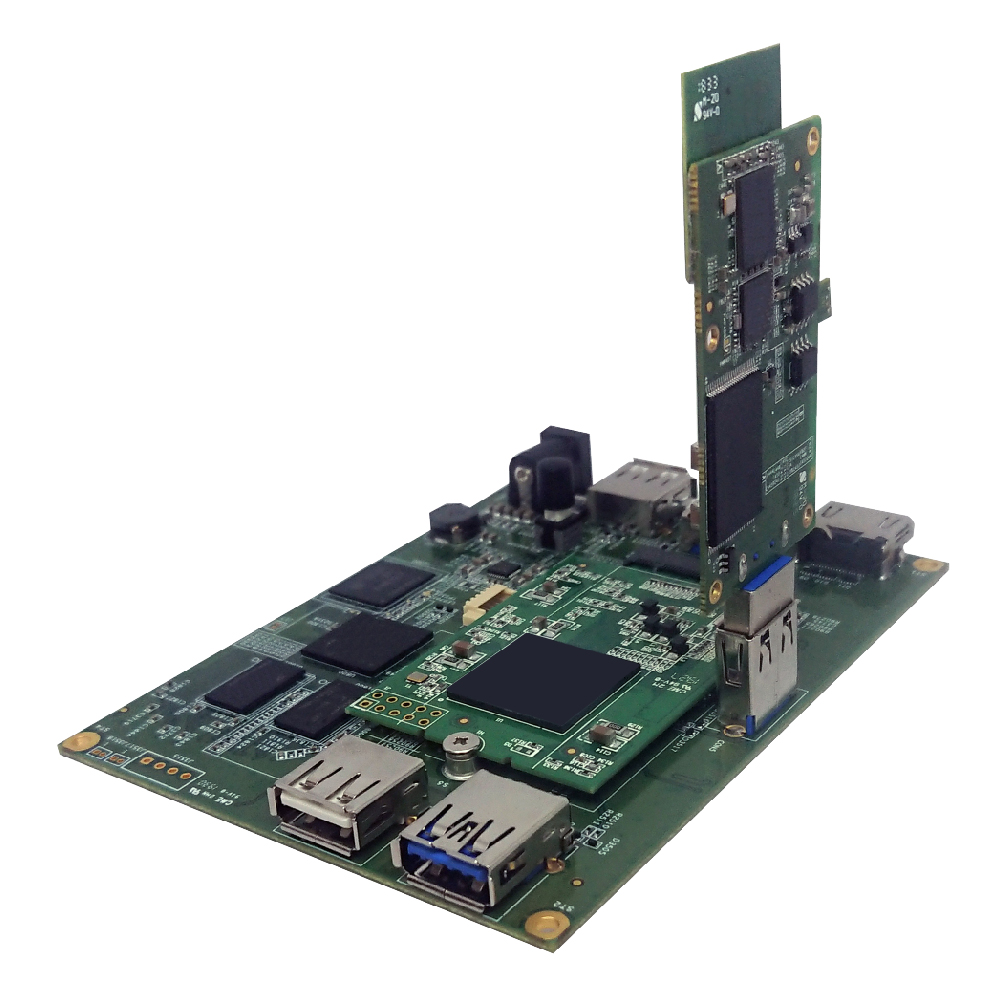

BLULUN OVERVIEW

The BLULUN powered by Millitronic for Wireless Gigabit (IEEE 802.11ad) connectivity,which includes radio and baseband chip set with 60GHz phase array.

This module provides USB3.0 host , HDMI 1.4 interface, and supports bi direction communication.


Radio Front-end Characteristic

■ Direct-Conversion
■ Beamforming phase array
■ Support Ch1 / 58.32GHz,Ch2 / 60.48GHz,Ch3 / 62.64GHz
■ Ave EIRP 22dBm
■ EVM: -22 dB, NF: 6.5dB


Applications

■ HDMI over network for wireless dock for low latency display
■ Wireless Gigabit USB3.0 server


Feature

■ Adaptive beamforming algorithm for RF link budget
■ IEEE802.11ad compliance
■ Bi-direction communication
■ 360 degree wireless FOV
■ 1Gbps @ LOS 5-8 meters
■ Size: 110mm X 82mm



Characteristic

■ IEEE 802.11ad SC PHY
■ Quad-core ARM Cortex A-53 CPU
■ Support MCS 1~9, BPSK,QPSK
■ Boot Rom/Internal SRAM
■ IEEE 802.11ad MAC
■ Video decoder supports 4K @60fps
■ Power Consumption < 16W


Interface

■ USB 3.0 x 2
■ USB2.0 x 1
■ HDMI 1.4 x 1


Certification

■ MG360 FCC approved

Video

    conference room


Last Update : 2020-05-25
