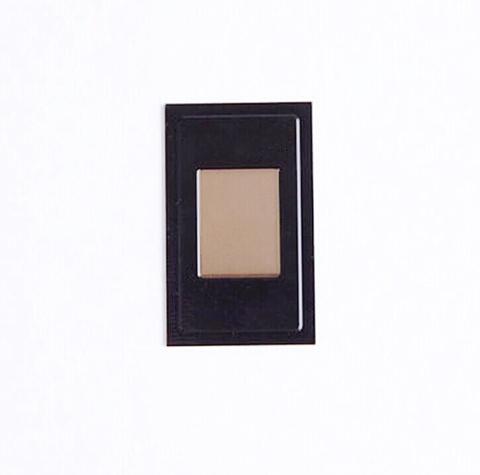

208*288 Capacitive Fingerprint Sensor for Access Control

Model No.
MFC-1208
Made in
Taiwan
Supplier
MIDAS TOUCH SOLUTIONS INC.More About This Product
Request for Quotation

Spec

  • Sensor Pixel : 208*288

Key Features

Features
  • Spatial resolution 508 DPI
  • 201 x 288 pixel 2D sensor array
  • Sensing area 10.4 mm x 14.4 mm
  • 20.4mm x 33.4mm package size
  • IP67 dust and water resistant
  • Built-in 8-bit ADC for digitizing image
  • Built-in programmable voltage reference
  • High-speed SPI interface
  • 0.07 sec readout time
  • 128-byte on-chip data FIFO
  • 2.6Volt ~ 3.6 Volt for I/O communication
  • Windowing function to crop the smaller image
  • Finger detection function to detect finger on the sensor
  • Interrupt pin to wake up host when the finger on the sensor
Overview

Embedded the MFC-1208  capacitive fingerprint sensor in your product for advanced fingerprint acquisition and verification. 508 DPI resolutions deliver superior image quality for highly accurate readings and a 0.07-second readout time enable quick verification.
The built-in analog and digital circuitry minimizes the number of external components and provides an easy-to-use, standard SPI interface to microprocessors. Finger detection function can detect finger automatically and wake up microprocessors by hardware interrupt pin.
Windowing function can crop smaller fingerprint image to improve the image read frame rate or other applications.
Fingerprint Recognition Algorithm Support
  • Good adaptability to dry, wet, or fuzzy finger
  • Repair the fractured fingerprints automatically
  • Great anti-deformation ability
  • Supporting 360 °Authentication
  • Self-learning during usage
  • ISO Standard: ANSI/INCIT 378 Compliant Extractor & Matcher
  • Compliant ISO/IEC 19794-2 fingerprint minutia standards.
  • Fingerprint Template Size < 1KB
  • Verification speed < 700 ms
Applications
  • Security device
  • Time and attendance control system
  • Computer peripheral

Payment Details

  • Payment Terms : TT ,PayPal
  • Minimum Order : 100 Piece(s)

Last Update : 2019-05-23
